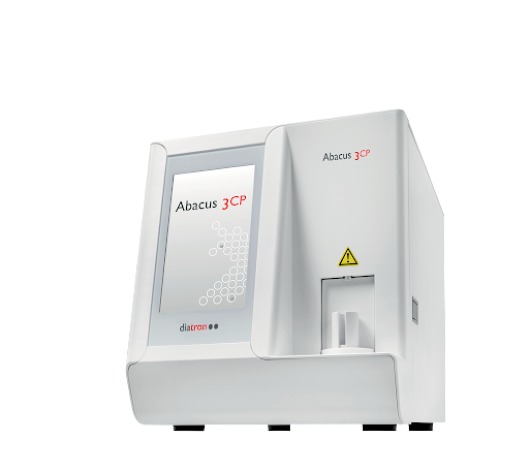

Diatron Abacus 3CP CBC Analyzer
Abacus 3 (3-Part) CBC Analyzer, NEW- Includes Installation, Training, Initial Reagent Set, 1 Year Warranty
Product Code: A3CP-1
WHY CHOOSE MYCO INSTRUMENTATION?
See Why in 2 mins.
Abacus 3 (3-Part) CBC Analyzer
NEW- Includes Installation, Training, Initial Reagent Set, 1 Year Warranty
The Abacus 3CP system is a compact, bench top, 60 test/hour, 3-part WBC differential analyzer with two sampling modes: a cap piercing mode for closed tube sampling and another for open tubes. The Abacus 3CP has a large color touchscreen with an easy to follow, intuitive user interface. The system is an ideal solution for small laboratories, satellite clinics and doctors’ offices that are looking for reliable, safe, accurate and easy to use instrumentation.
Benefits and Key Features
Accurate and Precise Results
- Proven impedance measurement technology
- Advanced flagging algorithms
- Clog detection and prevention with automatic system cleaning processes
- Unique sample rotor
User Friendly and Easy to Operate
- A high resolution touch screen with easy to follow internationally recognized icons
- Recording of sample and quality control
- Information is fast and efficient
- Information can be uploaded from a USB or QR code with barcode reader
- Transfer data using bi-directional LIS connection
Operator Safety

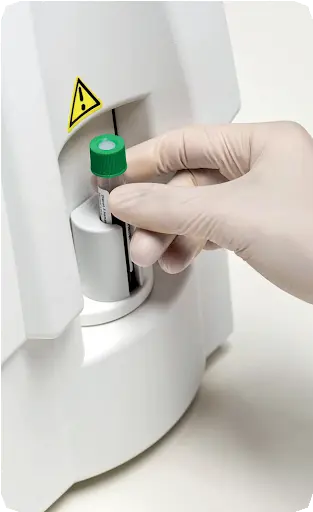

- Cap piercing mode validated for multiple sample tube types e.g. Vacutainer and Venosafe
- Reduced risk of biohazard exposure
- Self-cleaning procedures minimize daily maintenance
Confidence
- System uses easy to understand warning messages and sample flags
- Employs a comprehensive QC SW package
- Offers (4 levels) of user access rights / authority levels
- Automatically manages on-board reagent status and lot / expiration dates
- Designed to use specific Diatron reagents to deliver the highest quality results
Diatron Reagents
Our systems comprise of two perfectly matched elements: analyzers and reagents. The optimum performance of our analyzer systems is only achieved when our matched reagents are used. Our ISO 13485 certified reagent manufacturing plant is designed to ensure the highest quality standards. All lots of reagent we manufacture are fully validated prior to release on each of our associated instruments for low background counts, osmolality, pH and other critical parameters. Our diluent reagents contain no azide and our lyse reagents are cyanide-free. Our highly stable reagents offer a shelf life of up to 36 months from the date of manufacture and up to 120 days of onboard stability. The combination of Diatron reagents and Diatron analyzers together ensure the best system performance and quality of results.
Specifications
Measuring Data
- Throughput: 60 tests/hour
- Parameters: 16 including 3-part WBC differential: WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, MCV, HCT, HGB, MCH, MCHC, PLT, MPV, RDW-CV
Measuring Principle
- Volumetric impedance method
- Light absorbance for HGB measurement
Reagents and Sampling System
- Samples
- Sample volume: 100 μl
- Sampling method: Open and closed tubes
- Calibration: Manual or automatic
- Sample volume: 100 μl
- Reagents
- Environmentally friendly Diluent bulk and Cleaner reagents and cyanide-free Lyse reagent or
- Diatro•ECO Reagent Pack: Up to 145 measurements
Quality Control
- 24 QC lots
- Levey-Jennings graphs
- USB and barcode option to load QC target values
- Capable to read QR codes for reference input data
Technical Features
- Data storage capacity: 10,000 results
- Compatibility with many external printers
- Interfacing possibilities: USB, LAN (HL7)

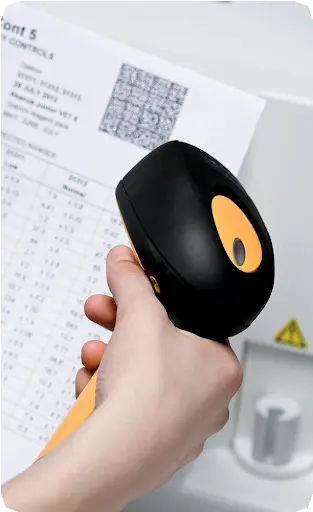

- Optional external barcode reader
- Built-in thermal printer module, 58 mm wide roll paper, full report with histograms
Usage

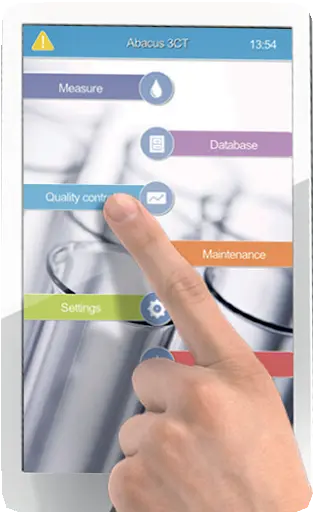

- Color touch screen operation
- Logical/intuitive user interface
- User language: English
Dimensions
- Size (Width x Depth x Height): 32 cm x 49 cm x 36 cm
- 12˝ x 19˝ x 14˝
- Weight: 18 kg, 39 lbs
