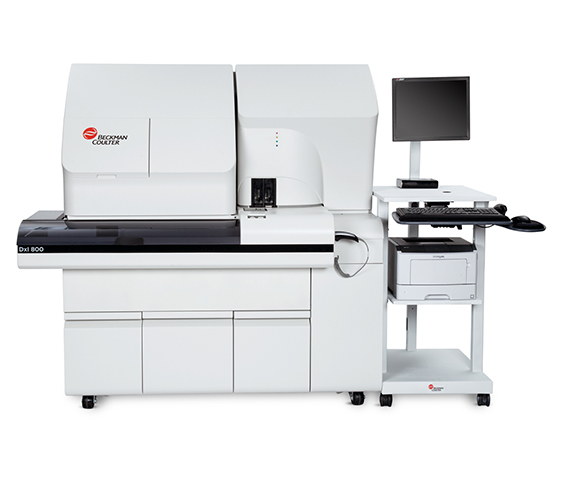

Beckman Unicel Dxi 800

Beckman Unicel Dxi 800

This system offers the below features:

A technology continuum and identical reagents guarantee consistent patient results

• Standardized design of reagent packs
• Compatibility across immunoassay systems
• Minimal reagent preparation or reagent management required
• Bar-coded, liquid, ready-to-use reagents
• Onboard capacity of 50 refrigerated reagent packs enhance flexibility — configure the system menu to match your testing requirements
• A broad menu across a wide variety of disease states enables your laboratory to consolidate workstations

Simplified operation improves productivity

• Load reagents and all consumables ‘on-the-fly’, without using the console computer or pausing the instrument, minimizing intervention
• Easy-to-follow pictogram and indicator lights show which supplies need replenishment

• Large volume supplies maximize walkaway capacity

Streamlined sample handling

• Load capacity of 120 samples at once; continuous loading capability
• Racks are compatible with SYNCHRON LX systems, decreasing sample handling across multiple systems
• Racks can be loaded directly from the centrifuge, reducing manual processes
• Routine sample loading can be interrupted to load STAT samples quickly
• “Point-in-space” pipetting technology aligned with NCCLS guidelines allows integration with laboratory automation systems

• Releases primary tube in less than five minutes for testing in other areas of the lab

On-board aliquot capability

• Automatically creates aliquots based on the volume of requested tests plus any additional volume that may be required for user-defined reflex or re-run test scenarios
• System stores aliquots for up to three hours in a patented, refrigerated low-evaporation compartment

• Simplifies inventory management — utilize same type of vessel for aliquots and reactions

Proven chemiluminescent detection delivers excellent precision and sensitivity with a broad dynamic range

• System supports multiple assay protocols to ensure peak assay performance
• Magnetic particle separation with chemiluminescent detection delivers exceptional clinical performance
• Rapid assay kinetics improve TAT

Innovative system delivers powerful efficiency

• Intuitive operator interface, with touch screen capability, maximizes efficiency

• Auto-matched pipettors work in parallel to deliver sample and reagent into the reaction vessels – and achieves a peak throughput of 400 tests per hour


• Weight: 1,390 Lbs.
• Dimensions: 67(H) x 68(W) x 38(D) inches
