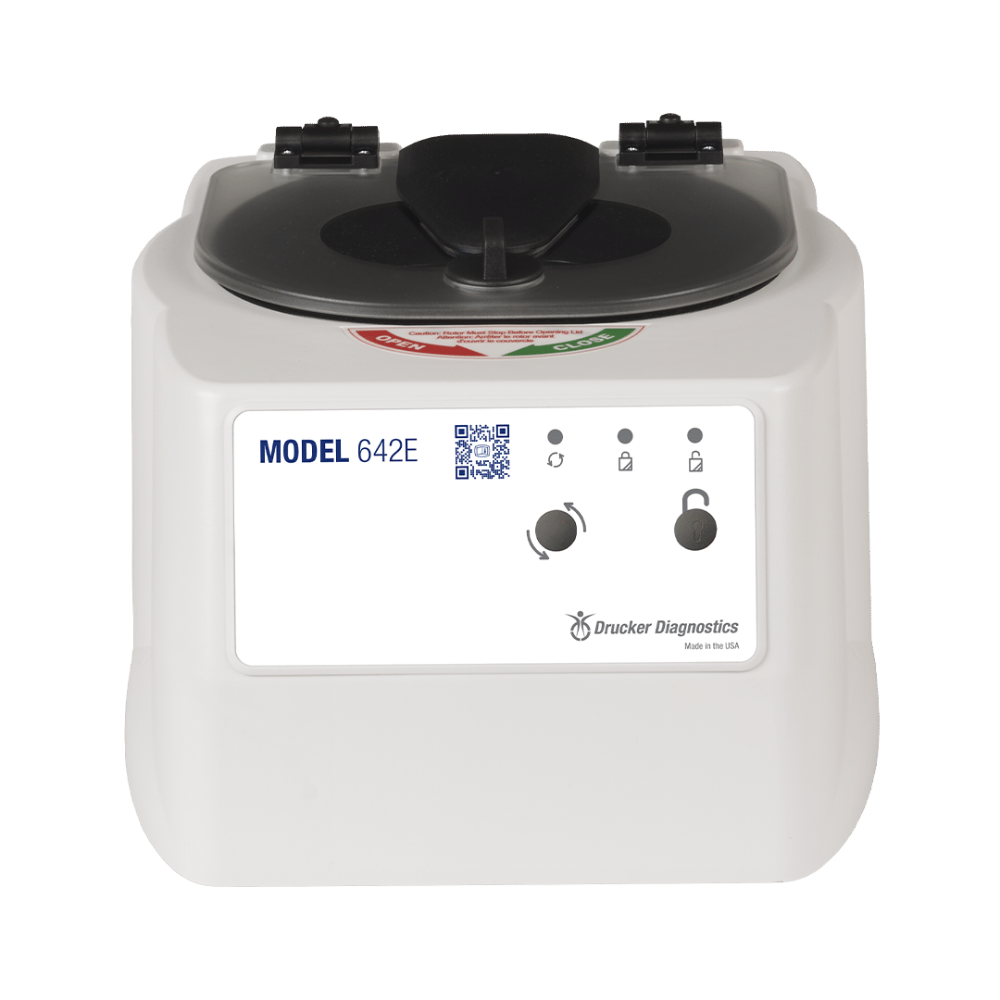

Drucker Diagnostics Model 642E Horizontal Centrifuge
In Stock
Product Code: 642E-N
Manufacturer: Drucker Diagnostics
Shipping Weight: 13.70lbs (6.21kg)
WHY CHOOSE MYCO INSTRUMENTATION?
See Why in 2 mins.
Drucker Diagnostics Model 642E Horizontal Centrifuge
Model 642E Horizontal Centrifuge
The Model 642E is the world’s best selling horizontal clinical centrifuge. The simple “one-button” operation assures repeatable, reproducible, and high quality analytic results every time.
The Model 642E is a compact single-speed centrifuge designed to provide the ideal pre-analytic sample processing performance recommended by all collection tube manufacturers. Using patented rotor technology, the 642E reduces blood separation processing times by 33% while minimizing use of valuable counter space for the doctor’s office or lab. The performance of the 642E reduces patient redraws by keeping your patient samples cool during processing, providing a high quality and stable gel layer, and by maximizing sample integrity; it’s no wonder the 642E is the world’s best selling clinical laboratory centrifuge.
- Full horizontal separation for test tubes up to 10mLCompact design uses less than 1 sq. ft. of counter space
- Horizontal rotor comes standard with each centrifuge
- MET compliant to CAN/CSA/UL standards
Applications
- Blood separation
- General purpose use
Model 642E: Features
- Electronic timer: Preset to 10 minutes, selectable
- Horizontal rotor: High quality separations for up to six(6) tubes
- Tube sizes: 0.5mL to 10mL; up to 17mm x 100mm
- Brushless AC motor: Years of operation with no routine maintenance
- Quiet operation: A double-encased motor and the “stability mount” design provides excellent imbalance stability
- Cool operation: Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Safety lid switch: Centrifuge will not run with the lid open
- Positive lid latching: Firm mechanical latching of the lid prevents the escape of debris
- Clear shatter proof lid: Allows for safe sample observation and optical calibrations
- Composite side walls: Glass fiber reinforced nylon and high impact polycarbonate provide dual layers of safety protection
- Regulatory approvals: MET marked and certified to UL standard 61010A-1 & 61010A-2-20 and CAN/CSA C22.2 No. 1010.1 & C22.2 No. 1010.2.20
| Electrical | ||
| Voltage | 115 (± 10) Volts | |
| Frequency | 60 Hz | |
| Max. Power Requirements | 172 Watts | |
| Protection Breaker | 4 Amp. Re–settable | |
| Centrifuge Motor | 1/30 H.P. Brushless AC | |
| General | ||
| Overall Dimensions | Height: 8.75 in. (22 cm) | |
| Width: 11.75 in. (30 cm) | ||
| Depth: 14 in. (35.5 cm) | ||
| Weight | 13.7 lbs. (6.4 kg) | |
| Acceleration Time | 15 seconds | |
| Deceleration Time | 12 seconds | |
| Timer | Electronic, 1 to 30 minutes, preset to 10 minutes | |
| Speed | 3380 (± 100) RPM with the 75mm (green) tube holder | |
| 3380 (± 100) RPM with the 100mm (red) tube holder | ||
| Force | 1265 (± 90) x g with the 75mm (green) tube holder | |
| 1590 (± 90) x g with the 100mm (red) tube holder | ||
