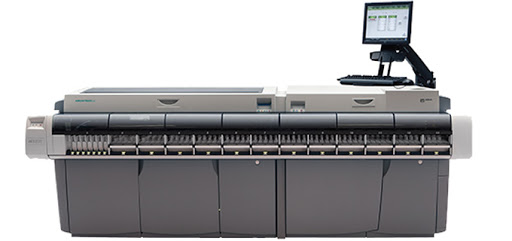

Abbott Architect ci8200

Abbott Architect ci8200

This system from Abbott Diagnostics is an integrated system consolidating clinical chemistry assay and immunoassays on one platform

Workstation integration delivers high throughput and fast turnaround

• Throughput of up to 1,200 clinical chemistry and 200 immunoassay tests per hour enhances workflow
• One operator interface for both chemistry and immunoassay testing reduces staff training and delivers one combined report
• One LIS interface reduces connectivity costs
• Large onboard reagent capacity of 25 immunoassays and 68 chemistries reduces operator intervention and minimizes sample splitting

Multi-Dimensional Sampling (MDS) improves laboratory workflow

• Robotic Sample Handler (RSH) maximizes analytical productivity with “real time” STAT, automated rerun, and reflex testing capabilities
• Sample loading of up to 367 samples via priority (35), routine (300), and carousel (32) areas provides continuous sample access
• Calibrator and quality control materials can be run via the RSH or sample carousel, providing additional loading flexibility
• Clot detection utilizing pressure differential technology ensures accurate sampling
• Minimal sample carryover of less than 0.1 ppm increases confidence in results

Operator productivity is maximized to reduce hands-on time

• Multiple reagent kit and cartridge sizes allow customization and minimize reagent waste
• 2-D barcoded reagents provide data on lot numbers, calibration curves, and expiration dates for automatic tracking
• Extensive calibration and reagent stability reduce reagent usage and operator hands-on time
• ci-Series 5-position carrier and tray processes multiple sample types, calibration, and quality control material to reduce sample sorting
• Intuitive indicator lights assist the operator in assessing sample status at a glance
• Large onboard consumable and buffer supplies provide 5-hour walkaway time

Established platform technologies ensure confidence

• Patented technologies deliver extended dynamic ranges, excellent sensitivity, and cost efficiencies
  1. Chemiflex®
  2. Int.ted Chip Technology™ (ICT)
  3. FlexRate™
  4. SmartWash™ washing system

Sophisticated software that’s easy to use

• Software common to all ci-Series modules reduces staff training and allows for customization
• Touch screen interface with icon-driven, easy-to-navigate software
• Less than 3 seconds screen response time and a maximum of 2 layers to execute a task
• On-line operator manuals, on-line help, automatically updated maintenance logs, and computer-based training
• Modem diagnostic capability
• Levy-Jennings QC tracking for up to 35,000 QC points

• i2000 Weight: 1,100 Lbs
• i2000 Dimensions: 44 x 68 x 48 inches
• C8000 Weight: 1,425 Lbs.
• C8000 Dimensions: 49 x 79 x 48 inches
