Diatron’s Pictus 500 with ISE
Diatron’s Pictus 500 with ISE

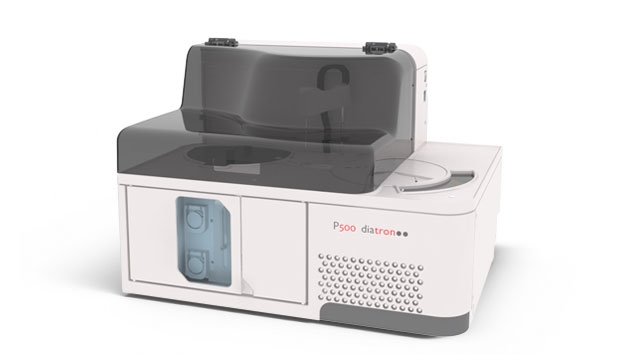

The P500 is a bench top, fully automated Clinical Chemistry system with a throughput of up to 340 routine chemistry and 180 ISE tests per hour, state of the art components and user-friendly interface provide a long life platform for analytical excellence. The system includes a full range of reagents, controls and calibrators.
*The products/features (mentioned herein) are not commercially available in all countries
Key Features and Benefits
- Intelligent software
- High quality components

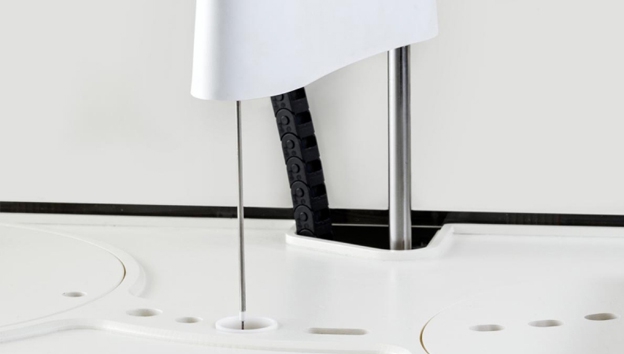

- Multi-functional pipetting arm
- User friendly interface
- Uninterrupted workflow
- Inventory management
- Remote access & diagnostics
- Cost effective operation
Specifications
- Throughput (tests/hour) Up to 340 tests/hour mono reagent
- ISE: Up to 180-240 tests/hour

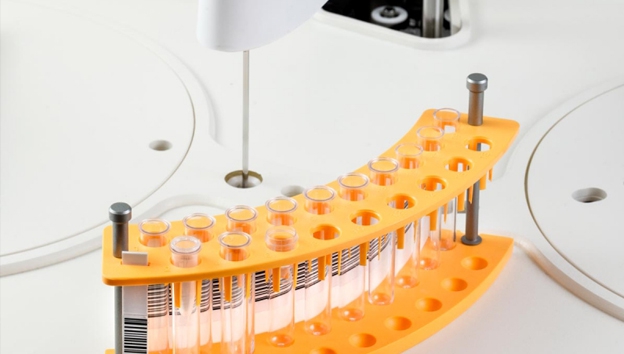

- Sample Racks/Positions per rack: 5 / 19
- Samples on-board capacity: 95
- Sample volume (μL): 2 - 200
- Optional direct 4-ISE module
- Reaction volume (μL): 180 - 650

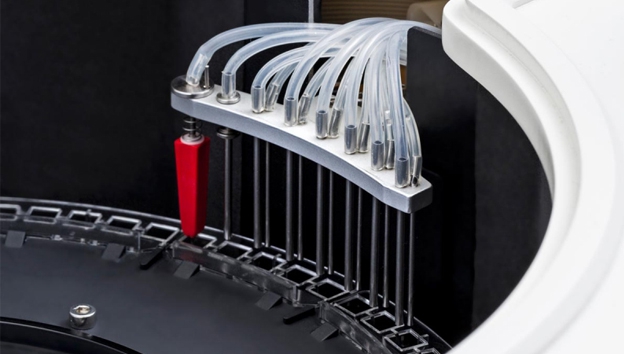

- PMMA reusable/single use cuvettes on board (in segments of five): 80
- Time to first result (seconds): 45
- Serum, plasma, urine, CSF and other sample types can be used

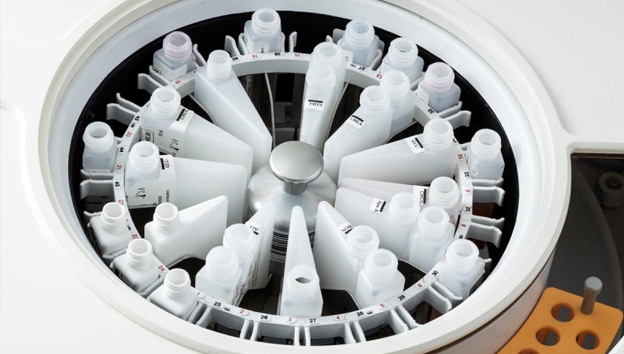

- Refrigerated reagent tray: 8+/- 2 ⁰C
- Refrigerated on-board single reagents/tests: 72
- Water Consumption: up to 2 l/h
- Up to 3 different reagents per test
- Internal Barcode Reader for samples, sectors and reagents
- Crash and collision detection
- Reagent pre-heater
- Clot detection
- QC: Graphical and statistical; Westgaard rules indicated
- Levey-Jennings plots, twin QC and box whisker plots
- Weight: 115 kg, 253 lbs
- Dimensions (Width x Depth x Height): 88 cm x 70 cm x 66 cm, 34.6" x 27.6" x 26"
*The products/features (mentioned herein) are not commercially available in all countries. Due to regulatory reasons their future availability cannot be guaranteed.
Options
- Optional direct 4-ISE module
- Optional stand/cabinet
- Optional auto fill / drain unit for system wash & waste
