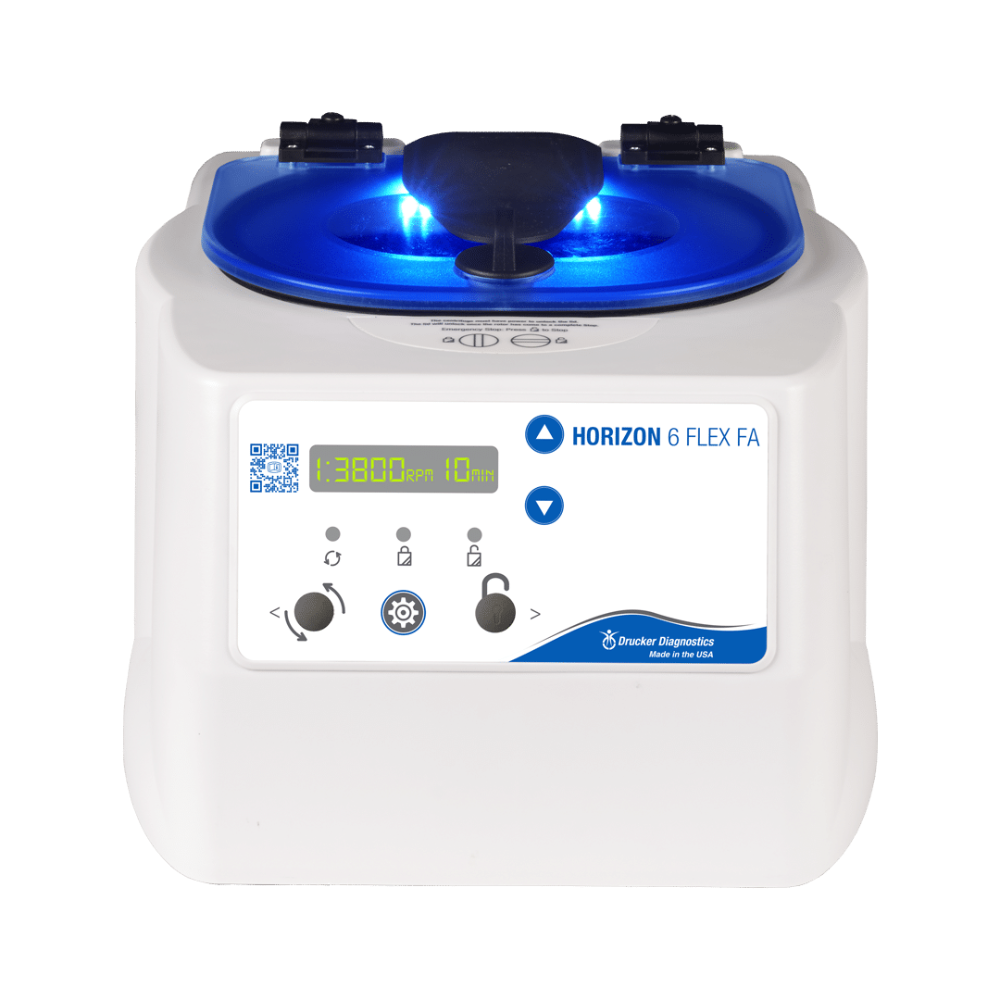

Drucker Diagnostics Model Horizon 6 Flex FA Centrifuge

Model Horizon 6 Flex FA Centrifuge

The Horizon 6 Flex FA by Drucker Diagnostics is ideal for small labs where flexibility and space are vital. It is a completely customizable, fixed-angle centrifuge that can save up to 10 programmable settings for RPM, run time, speed control and more, utilizing a fully digital display. LED lid lighting indicates when the centrifuge is ready (off), running (on), or done (flashing) to prevent forgotten tubes and preserve sample quality.

Applications

• Blood Chemistry
• Coagulation (coag)
• Platelet Poor Plasma (PPP)
• Urine


Fixed-Angle Routine Centrifuge with Customizable Settings and Digital Display

• Digital Display
• 6 Tube Capacity
• Fixed Angle Centrifugation
• 10 Programmable Settings
• 3 Cycles Preset for Routine Lab Needs
• 1,850 xg Max RCF
• 3,900 Max RPM
• Lid Lighting Indicates Cycle Status

Rotor and Tube Holders Included

• Capacity: Up to six (6) tubes
• Tube Sizes: 75, 100, or 125 mm (3-15 mL)
• Fixed Angle Rotor: Separate specimens at a fixed angle of 45 degrees
• Fully Programmable: Save and recall 10 easily customizable cycle settings, or choose from three presets for chemistry, coag, and urine
• Set and Lock Controls: Switch between preset cycles, or lock to a single cycle with the easy-to-use, two-button interface
• Intuitive Lid Lighting: Lid lights flash at the end of each cycle and continue flashing until the lid is opened
• Automatic Lid Lock: Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
• Cool Operation: Unique design of the convection based cooling system protects the samples even under the heaviest workloads
• Brushless DC Motor: Years of operation with no routine maintenance
• Clear Shatter-Proof Lid: Allows for safe sample observation and optical calibrations
• Reinforced Guard Bowl: Provides maximum safety and durability
• Quiet Operation: Enjoy a sound level of just 64 dBA

• Regulatory Approvals: Certified to US, Canadian, and European Safety regulations and standards

• Height: 9 in. (23 cm)
• Width: 12 in. (30 cm)
• Depth: 14 in. (36 cm)
• Weight: 12 lbs. (5.4 kg)
• Sound Level: 64 dBA
• Max. Acceleration Time: 20 seconds
• Max Deceleration Time: 20 Seconds
• Factory Setting Range: 1 to 30 Minutes (± 1%)
• Voltage: 95 to 253 VAC
• Frequency: 50/60 Hz
• Max. Power Requirements: 220 Watts
• Centrifuge Motor: 1/2 H.P. Brushless DC

• Max Speed: 3,900 RPM
