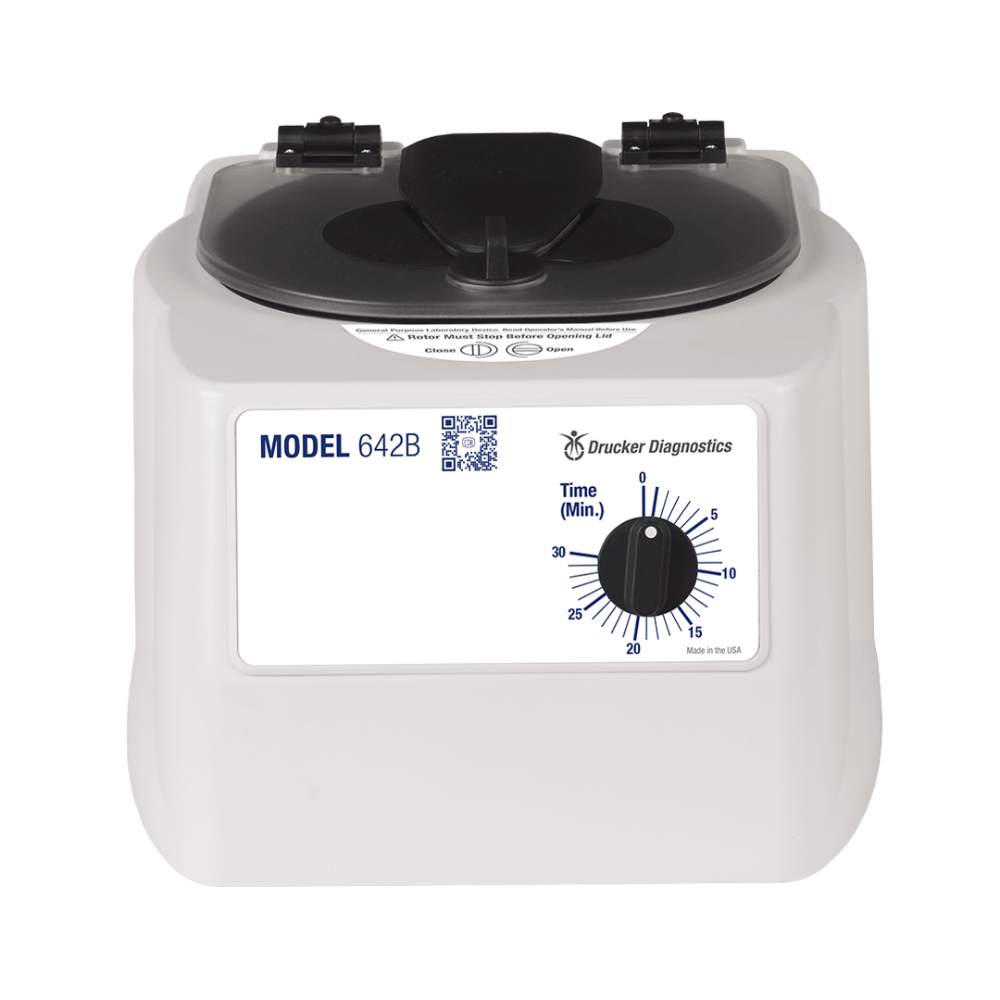

Model 642B Horizontal Centrifuge

The Model 642B is our most affordable horizontal centrifuge, but still includes all of the benefits of Drucker’s horizontal sample processing. Using our patented horizontal rotor technology, advanced engineering materials, and an advanced cooling system, the 642B ensures that high quality sample separations are achieved and maintained throughout sample transport and analysis.

  • Full horizontal separation for test tubes up to 10mL
  • Compact design uses less than 1 sq. ft. of counter space
  • Horizontal rotor comes standard with each centrifuge
  • MET compliant to CAN/CSA/UL standards


Applications

  • Blood separations: Chemistry, Coagulation, Serum separators and more
  • Urine separations: Urinalysis
  • General purpose use: Other clinical or analytical applications


  • Mechanical timer: 1 minute to 30 minutes allows for a wide range of applications
  • Horizontal rotor: High quality separations for up to six(6) tubes
  • Tube sizes: 0.5mL to 10mL; up to 17mm x 100mm
  • Brushless AC motor: Years of operation with no routine maintenance
  • Quiet operation: A double-encased motor and the “stability mount” design provides excellent imbalance stability
  • Cool operation: Unique design of the convection based cooling system protects the samples even under the heaviest workloads
  • Safety lid switch: Centrifuge will not run with the lid open
  • Positive lid latching: Firm mechanical latching of the lid prevents the escape of debris
  • Clear shatter proof lid: Allows for safe sample observation and optical calibrations
  • Reinforced side walls: Glass fiber reinforced nylon and high impact polycarbonate provide dual layers of safety protection
  • Regulatory approvals: Certified to US, Canadian, and European Safety standards.
  • 2 year warrant: Certified to US, Canadian, and European Safety standards.


Electrical
Voltage 115 (± 10) Volts
Frequency 60 Hz
Max. Power Requirements 172 Watts
Protection Breaker 4 Amp. Re–settable
Centrifuge Motor 1/30 H.P. Brushless AC
General
Overall DimensionsHeight: 8.75 in.
Width: 11.75 in.
Depth: 14.0 in.
Weight 13.75 lbs.
Acceleration Time 8 seconds
Deceleration Time 80 seconds
Timer Mechanical, 1 to 30 minutes
Speed 3380 (± 100) RPM with the 75mm (green) tube holder
3380 (± 100) RPM with the 100mm (red) tube holder
Force 1265 (± 90) x g with the 75mm (green) tube holder
1590 (± 90) x g with the 100mm (red) tube holder
