Feature
|

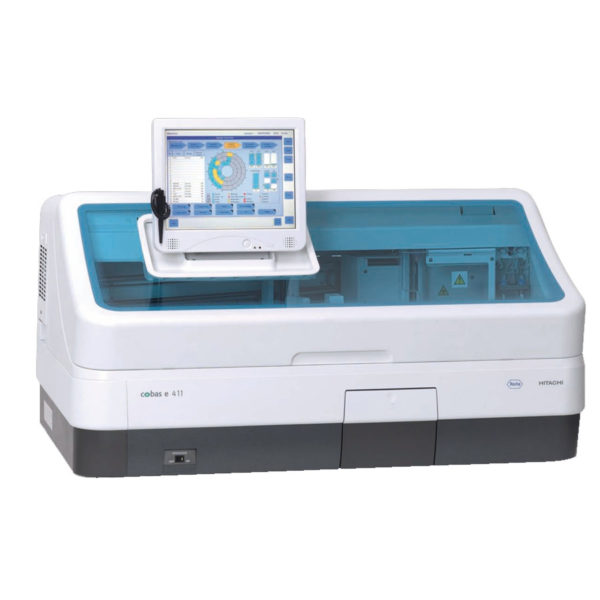

cobas e 411 analyzer
|
|
System
|
Fully automated, immunoassay analyzer for random access processing of ECL-based immunoassays (cobas e system format)
|
|
Types of modules
|
- cobas e 411 disk analyzer
- cobas e 411 rack analyzer
- Optional System Table (cabinet); Optional System Table Extension (for printer)
|
|
System components
|
Self contained bench top analyzer comprising an analytical unit and a customized user interface
|
|
System interfaces
|
RS232 serial interface, bidirectional
|
|
Throughput
|
Up to 86 tests/hour
|
|
Number of reagent channels
|
18 channels (reagent slots) for maximum of 18 tests
|
|
Programmable test parameters
|
N/A, programming-by-loading (PBT) concept, application data are transferred without operator intervention from the 2D barcode of the reagent pack (RP) into the instrument database
|
|
Sample material
|
Serum/plasma, urine, others
|
|
Sample input/output
|
- Disk Model: 30 positions for samples, calibrators and controls
- Rack Model: 15 racks with 5 samples each (= 75 samples in/out)
- STAT port: STAT samples are processed with priority
|
|
Sample volume
|
10 – 50 μl
|
|
Sample clot detection
|
Standard (pressure sensor)
|
|
Sample barcode types
|
Code 128; Codabar (NW 7); Interleaved 2 of 5; Code 39
|
|
Control unit
|
Microsoft® Windows® XP-based panel PC
|
|
Calibrator/QC input
|
cobas e
system-specific barcoded CalSet vials on disk or racks
|
|
Calibration methods
|
Lot calibration (L-cal); Reagent Pack (RP) calibration (R-Cal)
|
|
QC methods
|
- Individual QC and cumulative QC
- Up to 100 controls pre-programmable
- Preventive QC after calibration of the stand-by cobas e packs
|
|
Data storage capacity
|
- The memory contains data files necessary for the analyzer and software to work together:
- – Reagent Data File: Up to 300 reagent packs
- – Sample Data File: Up to 2000 test records (for samples and controls)
- – Calibration Data File: Up to 160 calibrators
- – QC Data File: Capacity up to 100 controls
- – Operating Parameter Data File: Up to 305 reagent applications
- – Up to 20 operator IDs
|
|
Electrical requirements
|
- 230/110 Volts AC; 1,000 kVA (disk), 1,250 kVA (rack)
- Frequency: 50 Hz or 60 Hz +/- 0.5%
|
|
Water/Waste requirements
|
- Water: Bacteria free, de-ionized water supply, resistance of < 10 μS/cm
- Liquid waste: Onboard waste container (4 liter), direct drain optional
|
|
Operating conditions
|
- Ambient temperature: 18 to 32°C
- Ambient humidity: 20 to 80% RH (without condensation)
- Heat Output: 2,879 kJ/hr (analyzer unit)
- Noise Output: 60 dBA (stand-by), 63 dBA (operation avg.)
|
|
Physical dimensions
|
- Width (disk/rack): 120 cm / 170 cm 47.2 in / 67 in
- Depth (disk/rack): 73 cm / 95 cm 28.7 in / 37.4 in
- Height: 80 cm / 31.4 in (closed top cover) 109 cm / 43 in (opened top cover)
|
|
Weight
|
- Disk: 180 kg / 397 lbs
- Rack: 250 kg / 551 lbs
|
